Triangle 6332 Contitech FD200-25427 Double Convoluted Type Air Suspension Spring Airbag

Triangle 6332 Contitech FD200-25427 Double Convoluted Type Air Suspension Spring Airbag
Triangle 6332 Contitech FD200-25427 Double Convoluted Type Air Suspension Spring Airbag Triangle 6332 Contitech FD200-25427 Double Convoluted Type Air Suspension Spring Airbag Triangle 6332 Contitech FD200-25427 Double Convoluted Type Air Suspension Spring Airbag

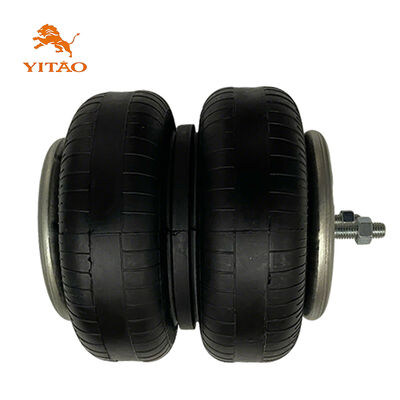

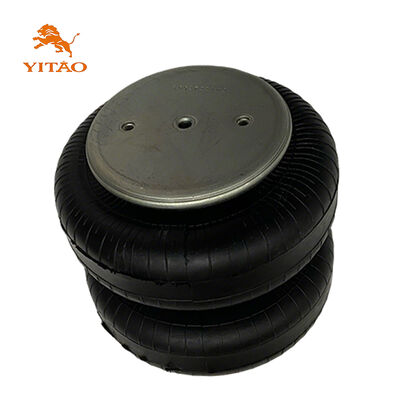

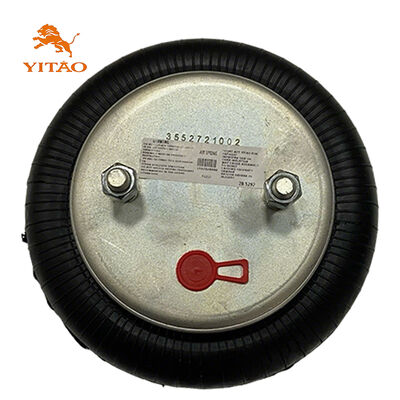

Gambar besar :  Triangle 6332 Contitech FD200-25427 Double Convoluted Type Air Suspension Spring Airbag

Detail produk:
Tempat asal: Cina
Nama merek: YITAO
Sertifikasi: IATF16949
Nomor model: 2B 5292/02B 20*2
Syarat-syarat pembayaran & pengiriman:
Kuantitas min Order: 50pieces
Harga: Negotiable in person
Kemasan rincian: Karton
Waktu pengiriman: 1 ~ 30 hari
Syarat-syarat pembayaran: T/T
Menyediakan kemampuan: 5000 lembar/Bulan
Kontak

Triangle 6332 Contitech FD200-25427 Double Convoluted Type Air Suspension Spring Airbag

Deskripsi
Nomor OE: W01-358-6945, 20-2, FD200-25427, 2B9-253, 578923206, 6332, 4427, 1003586945C, SC2125, AS0119F, AS041 Nomor YITAO: 2B 5292
Waktu Pengiriman: 3-10 Hari Jaminan: 12 bulan
Jenis: pegas udara, Pegas Suspensi Bahan utama: Karet + Logam
sedang mengemas: Pengepakan netral atau pengepakan khusus
Menyoroti:

Contitech FD200 air suspension spring

,

double convoluted air ride spring

,

Triangle 6332 airbag with warranty

Triangle 6332 Contitech FD200-25427 Double Convoluted Air Suspension Spring
High-quality double convoluted type air suspension spring airbag designed for industrial and automotive applications.
OE Manufacturer Reference Numbers
  • W01-358-6945, 20-2, FD200-25427, 2B9-253, 578923206, 6332, 4427, 1003586945C, SC2125, AS0119F, AS04151G
Cross Reference Compatibility
Brand Reference Numbers Numbering Variations
Firestone W01-358-6945 W013586945 / W01-358-6945 / W01 358 6945
Firestone 20-2 202 / 20-2 / 20 2
Contitech FD200-25427 FD20025427 / FD200-25427 / FD200 25427
Goodyear 2B9-253 2B9253 / 2B9-253 / 2B9 253
Goodyear 578923206 578923206
Triangle 6332 6332
Triangle 4427 4427
Ridewell 1003586945C 1003586945C
Leland SC2125 SC2125
Watson&Chalin AS0119F AS0119F
Watson&Chalin AS04151G AS04151G
Technical Specifications
Specifications Parameters
Outer diameter φ224
Weight 4.157kg
Net weight 3.826kg
Package Dimensions 25*25*25.5cm
Natural height 240mm
Maximum height 75mm
Minimum height 315mm
Extended Height /
Compressed Height /
Top Plate Width 160mm
Piston Width 160mm
Product Documentation & Manufacturing Process
Triangle 6332 Contitech FD200-25427 Double Convoluted Type Air Suspension Spring Airbag 0 Triangle 6332 Contitech FD200-25427 Double Convoluted Type Air Suspension Spring Airbag 1
Factory Overview
Triangle 6332 Contitech FD200-25427 Double Convoluted Type Air Suspension Spring Airbag 2
Quality Control Inspection
Triangle 6332 Contitech FD200-25427 Double Convoluted Type Air Suspension Spring Airbag 3
Manufacturing Equipment
Triangle 6332 Contitech FD200-25427 Double Convoluted Type Air Suspension Spring Airbag 4
R&D Center
Triangle 6332 Contitech FD200-25427 Double Convoluted Type Air Suspension Spring Airbag 5
Assembly and Forming
Triangle 6332 Contitech FD200-25427 Double Convoluted Type Air Suspension Spring Airbag 6
Vulcanization Shop
Images shown are for reference only. Actual product may vary slightly.
Delivery & Shipping Information
  • Delivery Time: Orders typically ship after payment receipt. Shipment completion within 1-30 business days based on order size
  • Packing Method: Standard brown carton packing; custom packaging available upon request
  • Shipping Marks: Standard weight and size display; custom shipping marks available
  • Transportation Methods: Sea, air, express delivery, railway, and combined transportation options
  • International Transport Notes: Strict standard packing to prevent damage. Contact us with any logistics questions
Frequently Asked Questions
IS THE SAMPLE AVAILABLE?
Yes, samples available via TNT, DHL, FEDEX or UPS (approx. 3-day delivery). Customers cover sample costs and airmail freight, refunded after order placement.
WHAT IS YOUR WARRANTY TERM?
Full container load orders receive 1% free spare parts. 12-month warranty from shipment date. Customers responsible for replacement part costs during warranty period.
CAN I USE MY OWN LOGO AND DESIGN ON PRODUCTS?
Yes, OEM services welcomed.
I CANNOT FIND THE ITEMS I WANT FROM YOUR WEBSITE, CAN YOU OFFER THE PRODUCTS I NEED?
Yes. We provide product sourcing services. Please provide detailed item requirements.
Contact Us
Feel free to reach out. We'll respond within 24 hours (or sooner) and look forward to working with you.
