1V 8104 Truck Air Spring Suitable for Firestone W01-M58-8104

1V 8104 Truck Air Spring Suitable for Firestone W01-M58-8104
1V 8104 Truck Air Spring Suitable for Firestone W01-M58-8104 1V 8104 Truck Air Spring Suitable for Firestone W01-M58-8104 1V 8104 Truck Air Spring Suitable for Firestone W01-M58-8104 1V 8104 Truck Air Spring Suitable for Firestone W01-M58-8104

Gambar besar :  1V 8104 Truck Air Spring Suitable for Firestone W01-M58-8104

Detail produk:
Tempat asal: Cina
Nama merek: YITAO
Sertifikasi: IATF16949
Nomor model: 1V 8104
Syarat-syarat pembayaran & pengiriman:
Kuantitas min Order: 50
Harga: Negotiable in person
Kemasan rincian: Karton
Waktu pengiriman: 30
Syarat-syarat pembayaran: T/T
Menyediakan kemampuan: 5000 lembar/Bulan
Kontak

1V 8104 Truck Air Spring Suitable for Firestone W01-M58-8104

Deskripsi
Nomor OE: W01-M58-8104,1T9L-11,1T19LB-12,TI9L OE NO2: SERI C01-968-1163, SERI TI9L C01-M58-1163
Jenis: Pegas Udara Truk Aplikasi: Untuk Suspensi Udara Truk
Sedang mengemas: Pengepakan netral atau pengepakan yang disesuaikan Kondisi: Baru
Jaminan: 1 Tahun Kuantitas min Order: 50 buah
Konfigurasi penyegelan: Pelat Penutup Crimp + Pelat Penyegel Vulkanisir Bahan: Karet
Bahan piston: Besi
Menyoroti:

1V 8104 truck air spring

,

Firestone W01-M58-8104 air spring

,

truck air spring with warranty

1V 8104 Truck Air Spring Suitable for Firestone W01-M58-8104
1V 8104 Truck Air Spring manufactured to specifications matching Firestone W01-M58-8104. This air spring fully replaces the original equipment and provides your truck with a comfortable and stable ride.
Cross References
Brand Reference Numbers Numbering Discrepancy
Firestone W01-M58-8104 W01 M58 8104/W01M588104/W01M58-8104/W01-M588104/W01-M58-8104
Firestone 1T9L-11 / 1T19LB-12 1T9L 11 1T19LB 12/1T9L111T19LB12/1T9L-11/1T19LB-12
Firestone T19L SERIES C01-968-1163 T19L SERIES C01 968 1163/T19LSERIESC019681163/T19L SERIES C01-968-1163
Firestone T19L SERIES C01-M58-1163 T19L SERIES C01 M58 1163/T19LSERIESC01M581163/T19L SERIES C01-M58-1163
Technical Specifications
Specifications Parameters
Outer diameter φ265
Weight 17.176 kg
Package Dimensions 30*30*43.5cm
Natural height 735mm
Maximum height 715mm
Minimum height 259mm
Extended Height To be updated
Compressed Height To be updated
Top Plate Width 289mm
Piston Width 261mm
1V 8104 Truck Air Spring Drawing
1V 8104 Truck Air Spring Suitable for Firestone W01-M58-8104 0
Delivery Information
  • Delivery Time: Orders are typically shipped within 30 business days after payment is received.
  • Packing Method: Brown carton packing; we can also pack according to your requirements.
  • Shipping Marks: Generally display weight and size. We can also make shipping marks according to your requirements.
  • Transportation Methods: Sea transportation, air transportation, express delivery, railway transportation and various combined transportation methods.
  • International Transport Notes: Due to international transportation requirements, we pack according to strict standards to avoid damage to the goods. If logistics information is stagnant during transportation, please wait patiently. If you have any questions, please contact us.

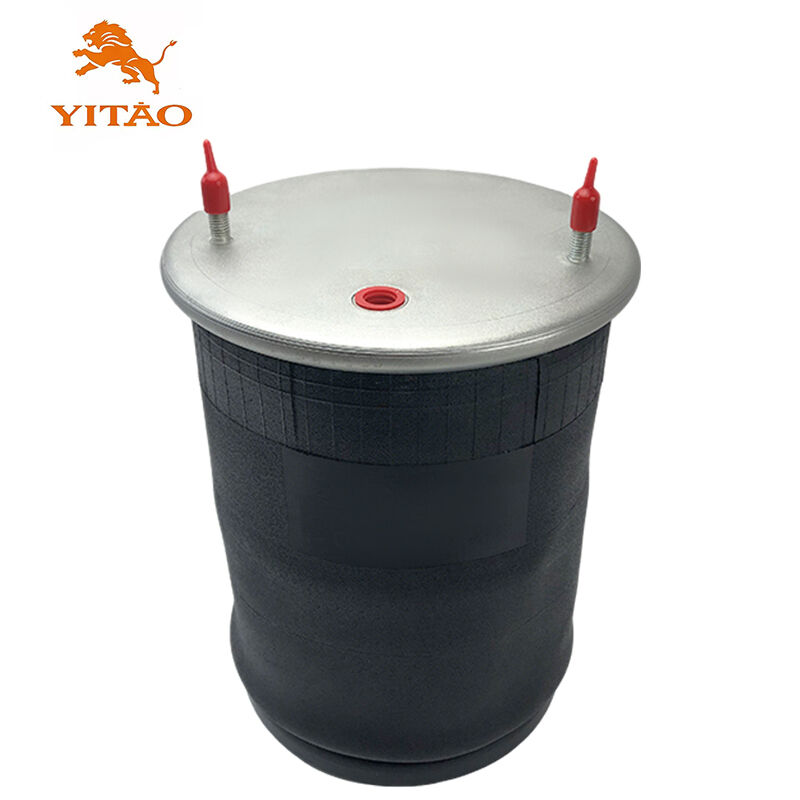

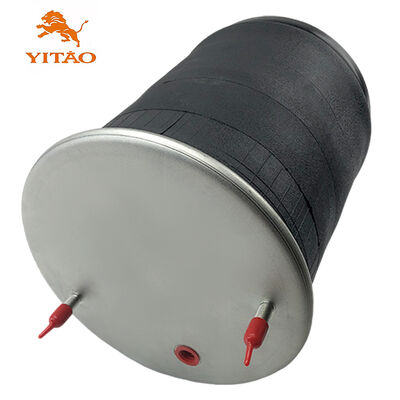

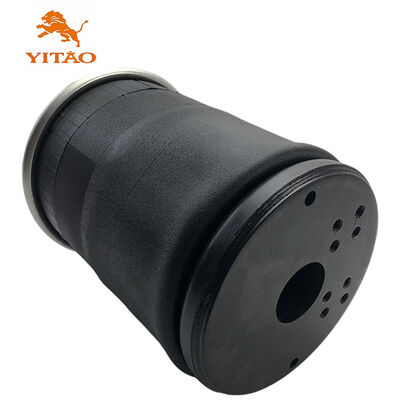

W01-M58-8104 C01-M58-1163 Truck Air Spring Real Pictures
1V 8104 Truck Air Spring Suitable for Firestone W01-M58-8104 1
1V 8104 Truck Air Spring Suitable for Firestone W01-M58-8104 2
1V 8104 Truck Air Spring Suitable for Firestone W01-M58-8104 3
1V 8104 Truck Air Spring Suitable for Firestone W01-M58-8104 4
1V 8104 Truck Air Spring Suitable for Firestone W01-M58-8104 5
Images shown are for reference only. Actual product may vary slightly.
