1V 9270 Truck Air Spring Suitable for Firestone W01-358-9270/Goodyear 1R13-119

1V 9270 Truck Air Spring Suitable for Firestone W01-358-9270/Goodyear 1R13-119
1V 9270 Truck Air Spring Suitable for Firestone W01-358-9270/Goodyear 1R13-119 1V 9270 Truck Air Spring Suitable for Firestone W01-358-9270/Goodyear 1R13-119 1V 9270 Truck Air Spring Suitable for Firestone W01-358-9270/Goodyear 1R13-119 1V 9270 Truck Air Spring Suitable for Firestone W01-358-9270/Goodyear 1R13-119

Gambar besar :  1V 9270 Truck Air Spring Suitable for Firestone W01-358-9270/Goodyear 1R13-119

Detail produk:
Tempat asal: Cina
Nama merek: YITAO
Sertifikasi: IATF16949
Nomor model: 1V 9270
Syarat-syarat pembayaran & pengiriman:
Kuantitas min Order: 50
Harga: Negotiable in person
Kemasan rincian: Karton
Waktu pengiriman: 30
Syarat-syarat pembayaran: T/T
Menyediakan kemampuan: 5000 lembar/Bulan

1V 9270 Truck Air Spring Suitable for Firestone W01-358-9270/Goodyear 1R13-119

Deskripsi
Nomor OE: W01-358-9270,910-13.5S433,1R13-119,1R12-077,S-20010,HT230T Jenis: Pegas Udara Truk
Sedang mengemas: Pengepakan netral atau pengepakan yang disesuaikan Kondisi: Baru
Jaminan: 1 Tahun Aplikasi: Untuk Suspensi Udara Truk
Kuantitas min Order: 50 buah Konfigurasi penyegelan: Pelat Penutup Crimp + Pelat Penyegel Vulkanisir
Bahan: Karet Bahan piston: Aluminium
Menyoroti:

Firestone W01-358-9270 truck air spring

,

Goodyear 1R13-119 truck air spring

,

1V 9270 truck air suspension

1V 9270 Truck Air Spring Suitable for Firestone W01-358-9270/Goodyear 1R13-119
Product Overview

1V 9270 Truck Air Spring Manufactured to specifications matching Firestone W01-358-9270/Goodyear 1R13-119 / 1R12-077, this air spring fully replaces the original equipment and provides your truck with a comfortable and stable ride.

Cross References
Brand Reference Numbers Numbering Discrepancy
Firestone W01-358-9270 W01 358 9270/W013589270/W01358-9270/W01-3589270/W01-358-9270
Contitech 910-13.5S433 910 13.5S433/91013.5S433/910-13.5S433
Goodyear 1R13-119 / 1R12-077 1R13 119 1R12 077/1R131191R12077/1R13-119/1R12-077
Hendrickson S-20010 / HT230T S 20010 HT230T/S20010HT230T/S-20010/HT230T
Technical Specifications
Specifications Parameters
Outer diameter φ255
Weight 7.662kg
Package Dimensions 28*28*31.5cm
Natural height 433mm
Maximum height 413mm
Minimum height 159mm
Extended Height To be updated
Compressed Height To be updated
Top Plate Width 231mm
Piston Width 241mm
Product Drawing
1V 9270 Truck Air Spring Suitable for Firestone W01-358-9270/Goodyear 1R13-119 0
Delivery Information
  • Delivery Time: Orders are typically shipped within 30 business days after payment is received.
  • Packing Method: Brown carton packing; we can also pack according to your requirements.
  • Shipping Marks: Generally display weight and size. We can also make shipping marks according to your requirements.
  • Transportation Methods: Sea transportation, air transportation, express delivery, railway transportation and various combined transportation methods.
  • International Transport Notes: Due to international transportation, we need to pack according to strict requirements to avoid damage to the goods. If logistics information is stagnant during transportation, please wait patiently. If you have any questions, please feel free to contact us.

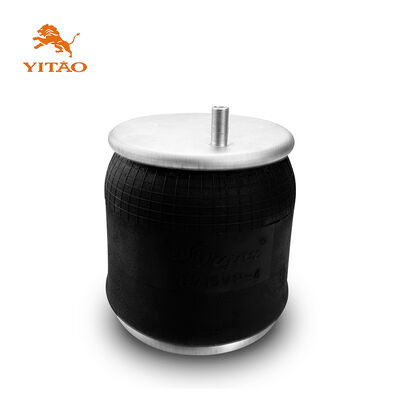

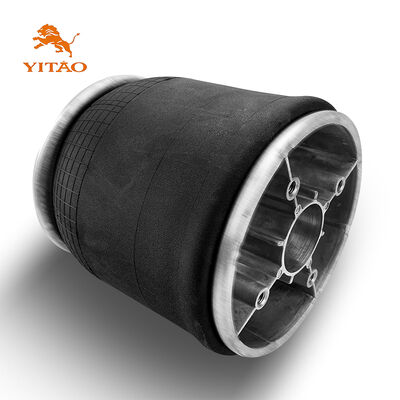

Product Images
1V 9270 Truck Air Spring Suitable for Firestone W01-358-9270/Goodyear 1R13-119 1 1V 9270 Truck Air Spring Suitable for Firestone W01-358-9270/Goodyear 1R13-119 2 1V 9270 Truck Air Spring Suitable for Firestone W01-358-9270/Goodyear 1R13-119 3 1V 9270 Truck Air Spring Suitable for Firestone W01-358-9270/Goodyear 1R13-119 4 1V 9270 Truck Air Spring Suitable for Firestone W01-358-9270/Goodyear 1R13-119 5 1V 9270 Truck Air Spring Suitable for Firestone W01-358-9270/Goodyear 1R13-119 6 1V 9270 Truck Air Spring Suitable for Firestone W01-358-9270/Goodyear 1R13-119 7
Images shown are for reference only. Actual product may vary slightly.
