1V 9213 Truck Air Spring Suitable for Firestone W01-358-9213/Contitech 910-16P44

1V 9213 Truck Air Spring Suitable for Firestone W01-358-9213/Contitech 910-16P44
1V 9213 Truck Air Spring Suitable for Firestone W01-358-9213/Contitech 910-16P44 1V 9213 Truck Air Spring Suitable for Firestone W01-358-9213/Contitech 910-16P44 1V 9213 Truck Air Spring Suitable for Firestone W01-358-9213/Contitech 910-16P44 1V 9213 Truck Air Spring Suitable for Firestone W01-358-9213/Contitech 910-16P44

Gambar besar :  1V 9213 Truck Air Spring Suitable for Firestone W01-358-9213/Contitech 910-16P44

Detail produk:
Tempat asal: Cina
Nama merek: YITAO
Sertifikasi: IATF16949
Nomor model: 1V 9213
Syarat-syarat pembayaran & pengiriman:
Kuantitas min Order: 50
Harga: Negotiable in person
Kemasan rincian: Karton
Waktu pengiriman: 30
Syarat-syarat pembayaran: T/T
Menyediakan kemampuan: 5000 lembar/Bulan
Kontak

1V 9213 Truck Air Spring Suitable for Firestone W01-358-9213/Contitech 910-16P44

Deskripsi
Nomor OE: W01-358-9213,1T15M-6,910-16P441,1R12-090,566243038 OE NO2: 1660581C-1,90557127,8407,8441,6363,352-9213,501559C-1,501559C-2
Jenis: Pegas Udara Truk Sedang mengemas: Pengepakan netral atau pengepakan yang disesuaikan
Kondisi: Baru Jaminan: 1 Tahun
Aplikasi: Untuk Suspensi Udara Truk Kuantitas min Order: 50 buah
Konfigurasi penyegelan: Pelat Penutup Crimp + Pelat Penyegel Vulkanisir Bahan: Karet
Bahan piston: PLA
Menyoroti:

Truck Air Spring for Firestone W01-358-9213

,

Truck Air Spring compatible with Contitech 910-16P44

,

1V 9213 Truck Air Spring with warranty

1V 9213 Truck Air Spring Suitable for Firestone W01-358-9213/Contitech 910-16P44
1V 9213 Truck Air Spring Manufactured to specifications matching Firestone W01-358-9213/Contitech 910-16P44, this air spring fully replaces the original equipment and provides your truck with a comfortable and stable ride.
Cross References
Brand Reference Numbers Numbering Discrepancy
Firestone W01-358-9213 / 1T15M-6 W01 358 9213 1T15M 6/W0135892131T15M6/W01-358-9213/1T15M-6
Contitech 910-16P441 910 16P441/91016P441/910-16P441
Goodyear 1R12-090 / 566243038 1R12 090 566243038/1R12090566243038/1R12-090/566243038
Dayton 352-9213 352 9213/3529213/352-9213
Loadguard 501559C-1 501559C 1/501559C1/501559C-1
Loadguard 501559C-2 / 1660581C-1 501559C 2 1660581C 1/501559C21660581C1/501559C-2/1660581C-1
Neway 90557127 :90557127
Triangle 8407/8441/6363 8407 8441 6363/840784416363/8407/8441/6363
Technical Specifications
Specifications Parameters
Outer diameter φ255
Weight 7.605kg
Package Dimensions 28*28*37.5cm
Natural height 506mm
Maximum height 486mm
Minimum height 156mm
Extended Height To be updated
Compressed Height To be updated
Top Plate Width 231mm
Piston Width 256mm
1V 9213 Truck Air Spring Drawing
1V 9213 Truck Air Spring Suitable for Firestone W01-358-9213/Contitech 910-16P44 0
Delivery Information
  • Delivery Time: Orders are typically shipped within 30 business days after payment is received.
  • Packing Method: Brown carton packing; we can also pack according to your requirements.
  • Shipping Marks: Generally display weight and size. We can also make shipping marks according to your requirements.
  • Transportation Methods: Sea transportation, air transportation, express delivery, railway transportation and various combined transportation methods.
  • International Transport Notes: Due to the international transportation, we need to pack according to strict requirements to avoid damage to the goods. If the logistics information is stagnant during transportation, please wait patiently. If you have any questions, please feel free to contact us.

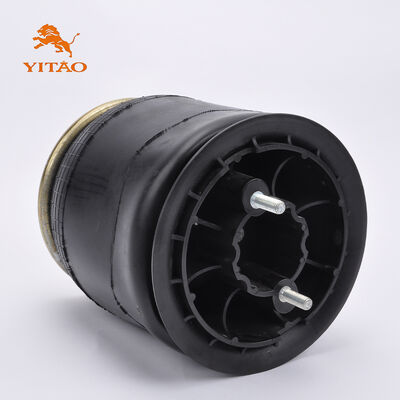

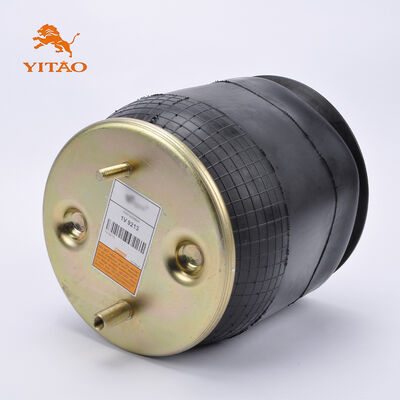

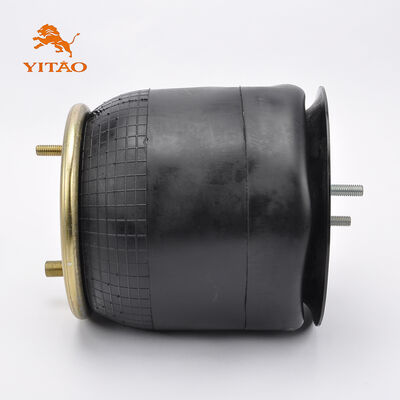

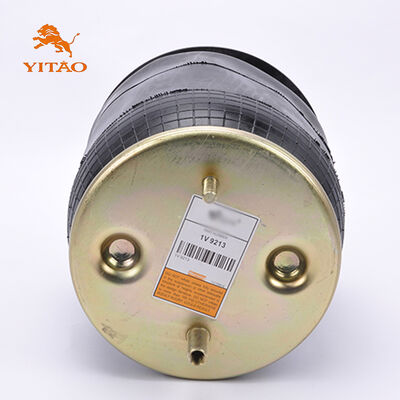

W01-358-9213,1T15M-6 Truck Air Spring Real Pictures
1V 9213 Truck Air Spring Suitable for Firestone W01-358-9213/Contitech 910-16P44 1 1V 9213 Truck Air Spring Suitable for Firestone W01-358-9213/Contitech 910-16P44 2 1V 9213 Truck Air Spring Suitable for Firestone W01-358-9213/Contitech 910-16P44 3 1V 9213 Truck Air Spring Suitable for Firestone W01-358-9213/Contitech 910-16P44 4 1V 9213 Truck Air Spring Suitable for Firestone W01-358-9213/Contitech 910-16P44 5 1V 9213 Truck Air Spring Suitable for Firestone W01-358-9213/Contitech 910-16P44 6 1V 9213 Truck Air Spring Suitable for Firestone W01-358-9213/Contitech 910-16P44 7
Images shown are for reference only. Actual product may vary slightly.
